CheeMuii 72 PCS Brass DOT Air Line Fittings with 50FT 1/4" and 50FT 3/8" DOT Air Line Kit Push Lock Air Fitting Quick Connect & NPT Thread Fittings with Pneumatic Tubing - size: 2ROLL-76PCS

About this item

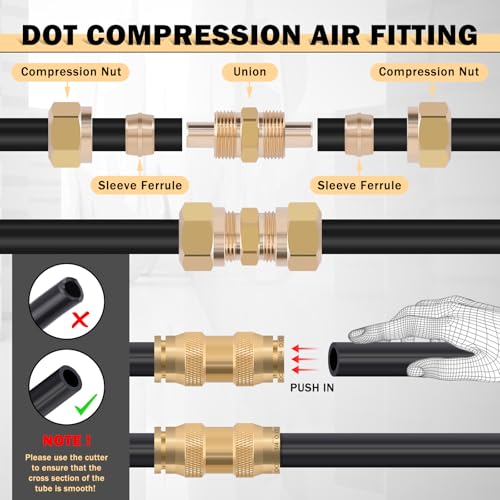

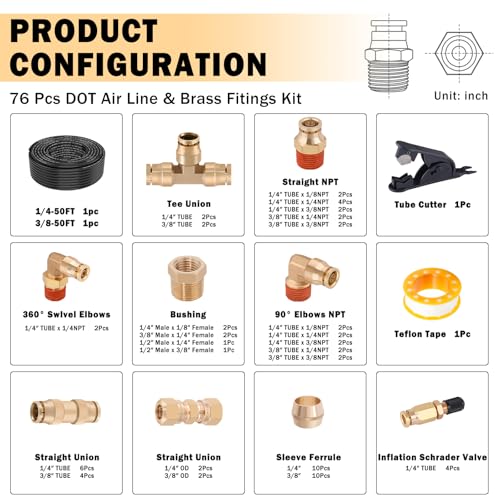

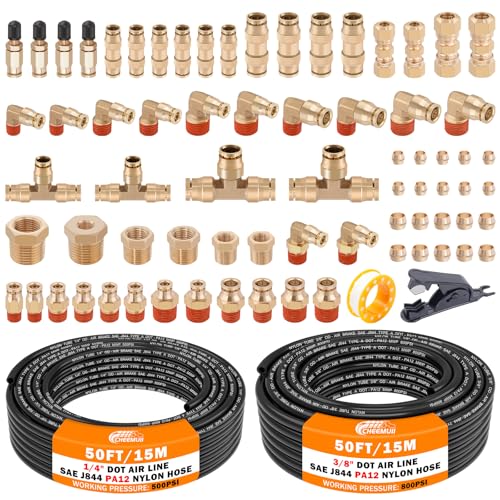

• 76 PCS PACKAGE INCLUDE: 50 ft 1/4" dot air line hose, 50 ft 3/8" dot air line hose, 4 pcs brass tube tee fittings, 14 pcs brass straight union, 12 pcs brass straight push connectors NPT thread, 10 pcs 90°elbows NPT thread, 2 pcs 360° swivel elbows NPT thread, 4 pcs brass 1/4" inflation Schrader valve, 6 pcs bushing, 20 pcs sleeve ferrule, 1 pc cutter,1 pc Teflon tape

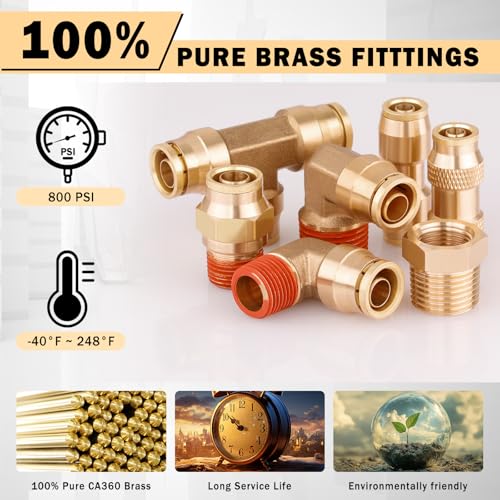

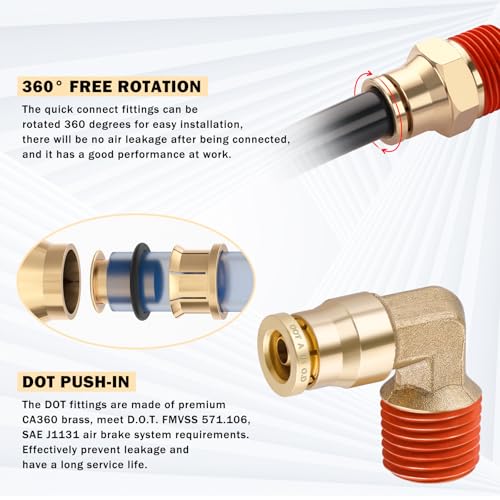

• PREMIUM DOT FITTINGS: CheeMuii DOT air hose fittings are made of high-quality CA360 brass, meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements, with corrosion resistance, high-temperature ductility, low permeability and long service life

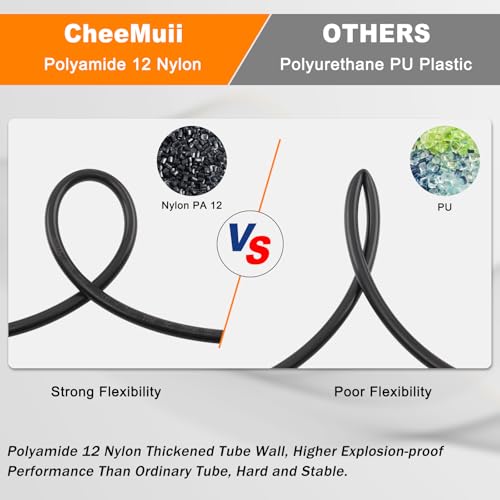

• PREMIUM PA12 DOT AIR HOSE: CheeMuii DOT air lines are made of high-quality Polyamide 12 nylon, meet D.O.T. FMVSS 571.106 approved, SAE J844 air brake system requirements, with corrosion resistance, high-temperature ductility, high pressure resistance and long service life
• HIGH-STRENGTH AIR HOSE: CheeMuii reinforced pneumatic tubing has high impact and wear resistance, can withstand higher working pressure, and has a longer service life. At the same time, it has a certain degree of flexibility and can be easily bent to a certain extent without affecting normal use
• AIR SUSPENSION VALVE: CheeMuii 1/4" inflation Schrader valves are made of brass, which is durable and corrosion-resistant. Thread length: 3/4". Provide a manual inflation point to air spring suspension bags. Each expansion valve is equipped with a protective cap to prevent dirt and mud

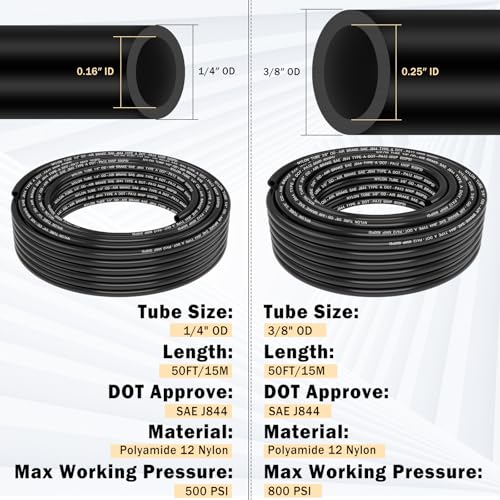

• 50 FT 1/4" AIR TUBING WORKING INTENSITY: The 1/4" DOT air lines can be operated in pressures from vacuum to 500 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
• 50 FT 3/8" AIR TUBING WORKING INTENSITY: The 3/8" DOT air lines can be operated in pressures from vacuum to 800 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
• WIDE APPLICATION: The air hose & DOT fittings kit can be used for air suspension systems, perfect for semi truck/trailer/RV repair air line leak, also ideal for industrial workshops, towing machine hose connection, etc

Overview

• Brand: CheeMuii
• Material: Brass, Polyamide Imide
• Color: Gold
• Item Weight: 2.29 Kilograms
• Maximum Pressure: 800 Pound per Square Inch
• Outside Diameter: 0.25 Inches
• Item Length: 100 Feet
• Manufacturer: CheeMuii
• Number of Packs: 1
• Set Name: Brass DOT Air Line Fitting Set (76 Piece)
