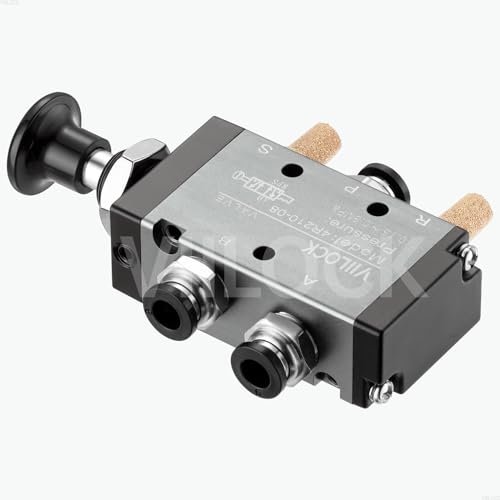

Pneumatic Air Hand Lever Valve, 5 Way 2 Position 1/4”NPT Solenoid Valve Manual Control Direct Driving Type Push-Pull 4R210-08

About this item

• Product name: 5 Way 2 Position Pneumatic Solenoid Valve

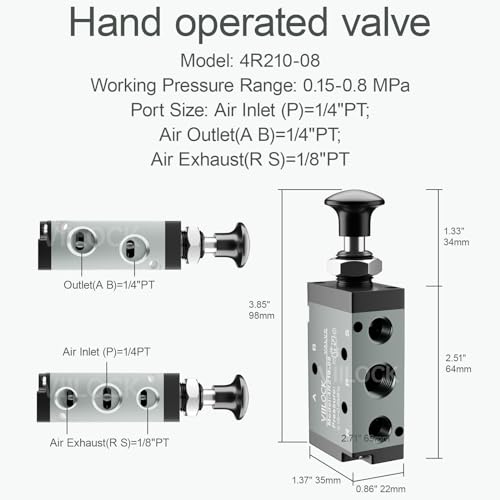

• Model: 4R210-08; Working Pressure Range : 0.15-0.8 MPa
• Port Size : Air Inlet (P)=1/4PT; Air Outlet(A B)=1/4PT; Air Exhaust(R S)=1/8PT

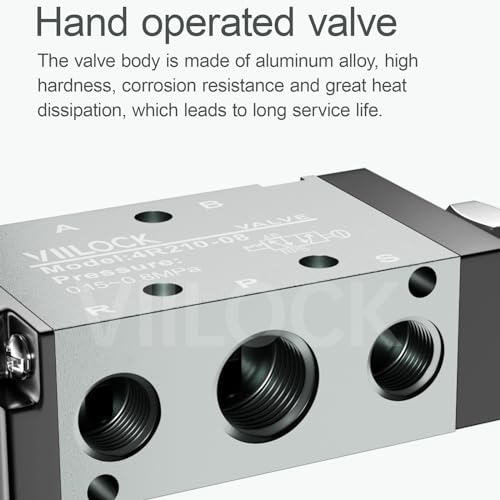

• The valve body is made of aluminum alloy, high hardness, corrosion resistance and great heat dissipation, which leads to long service life.
• The hand operated valve is widely used to control the flow of various types of fluids such as air, water, mud, liquid metals, applicable to mechanical equipment, textile equipment, medical equipment and food processing.

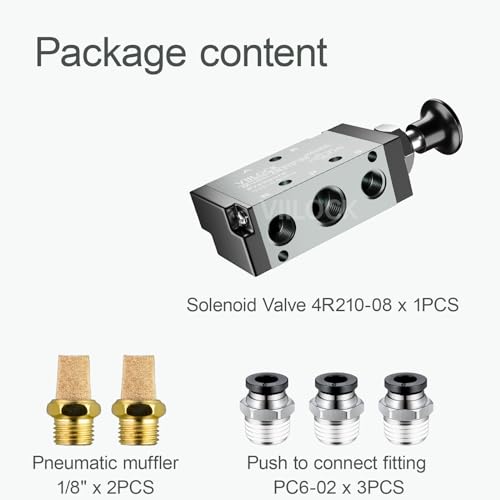

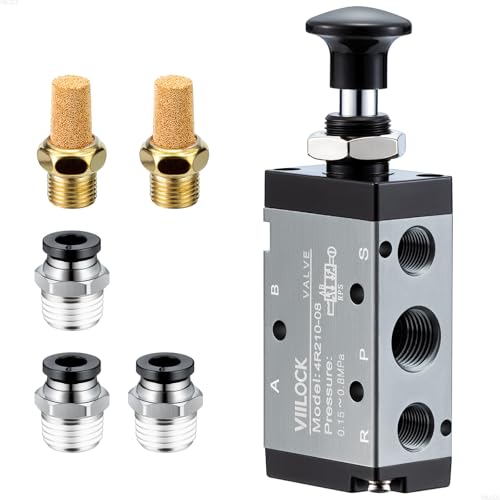

• Package content: 1 x Hand Lever Operated Solenoid Valve, 3 x PC6-02, 2 x Silencer

Overview

• Brand: VIILOCK
• Item dimensions L x W x H: 3.7 x 1.3 x 0.78 inches
• Inlet Connection Size: 0.25 Inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 0.8 Pascal
• Number of Ports: 5
• Outlet Connection Size: 0.25 Inches
• Unit Count: 1.0 Count
• Manufacturer: VIILOCK
